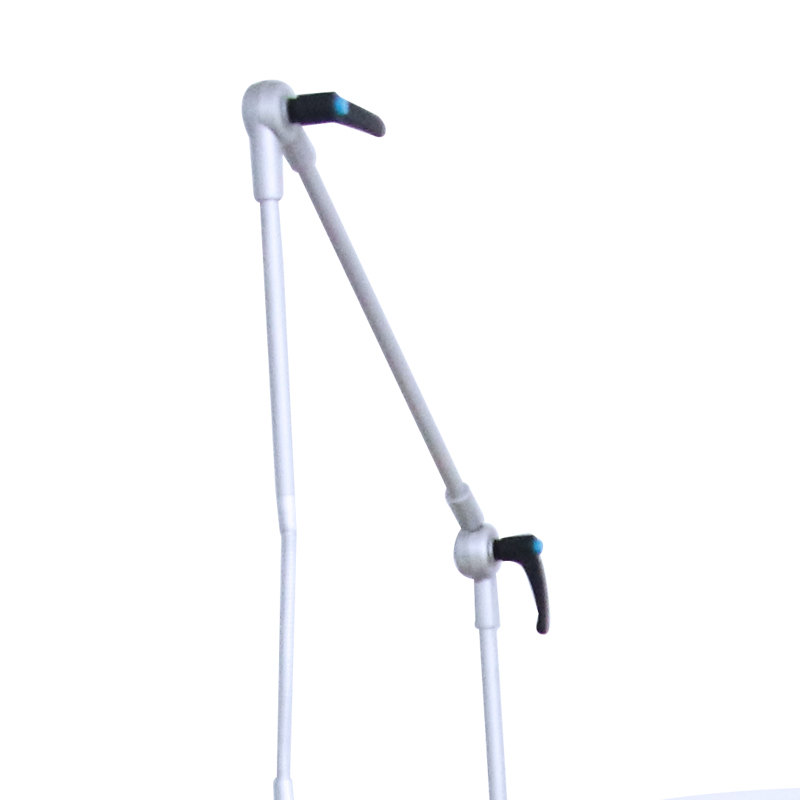

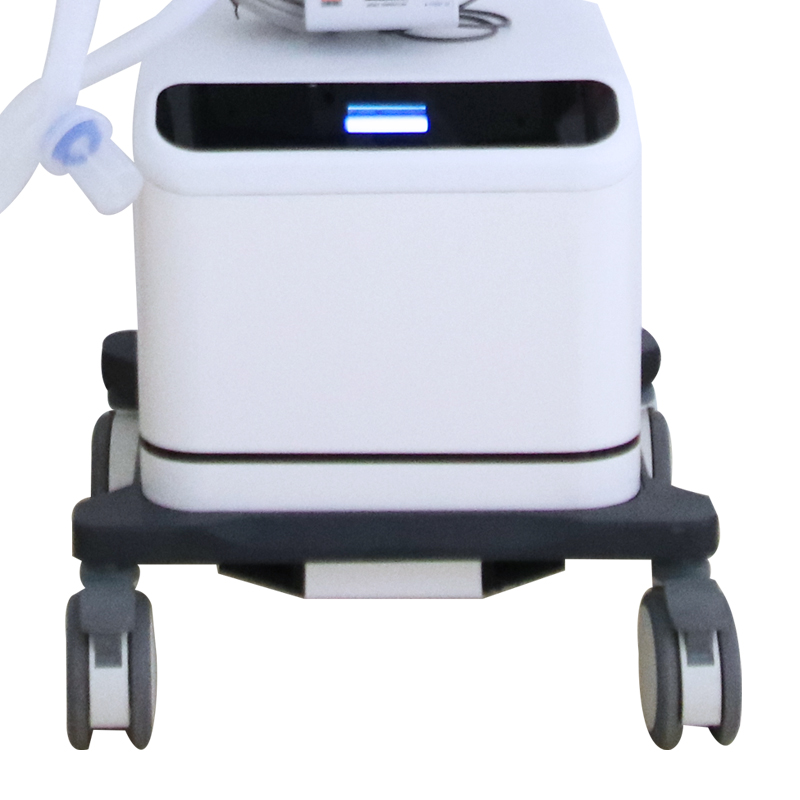

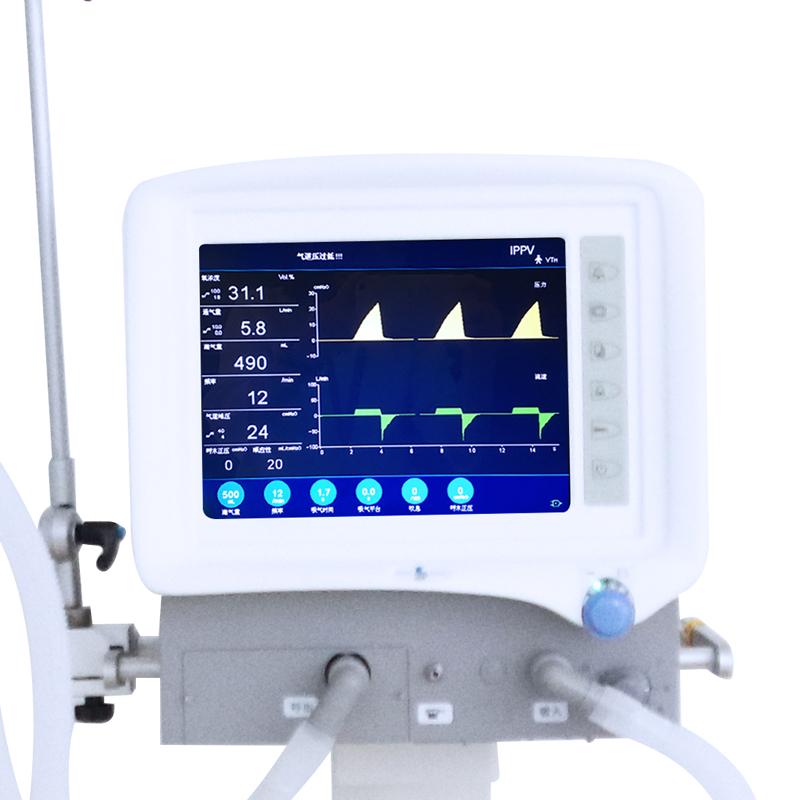

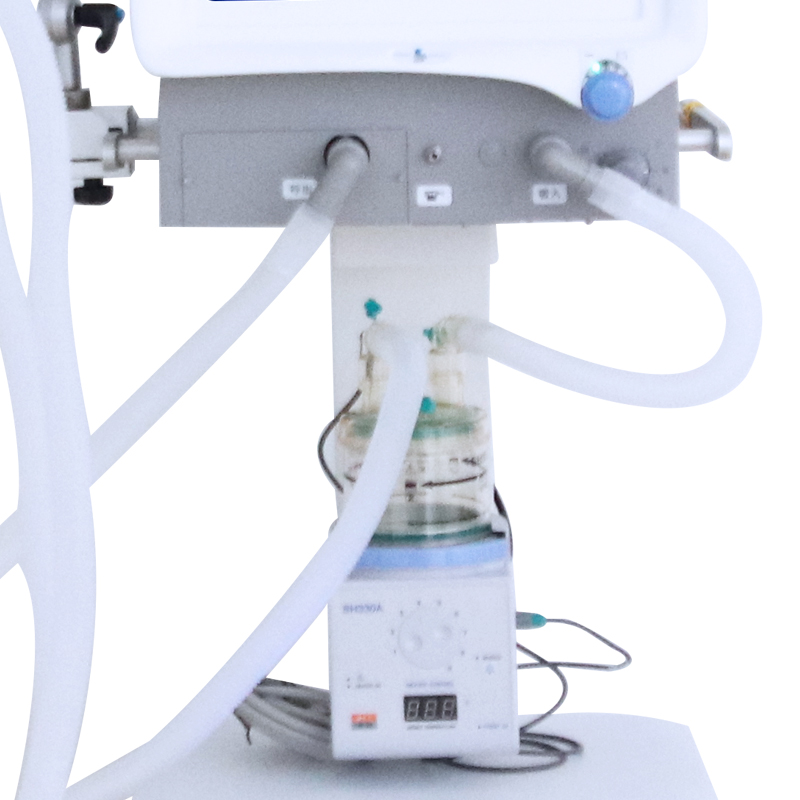

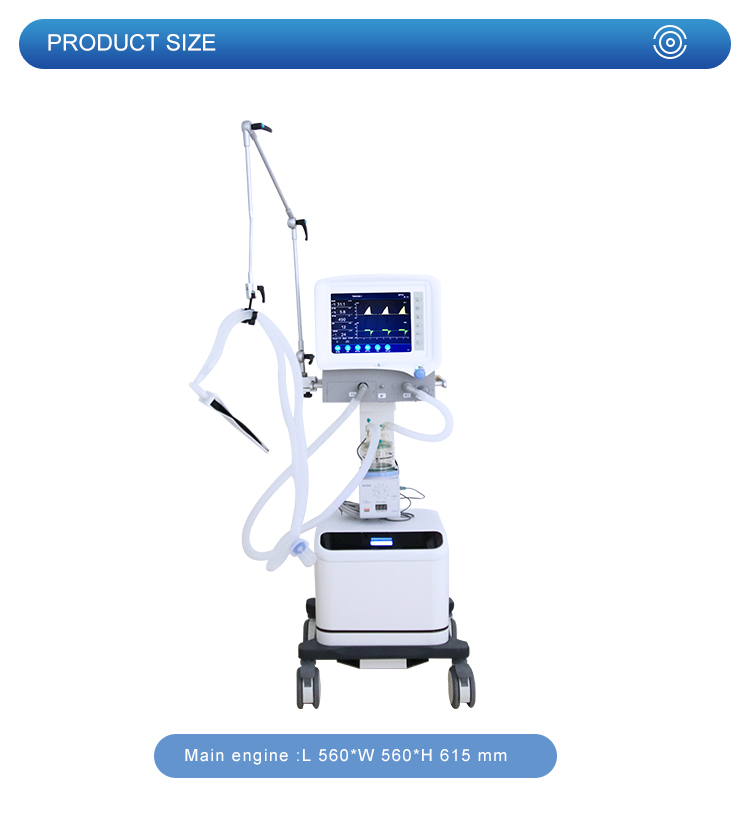

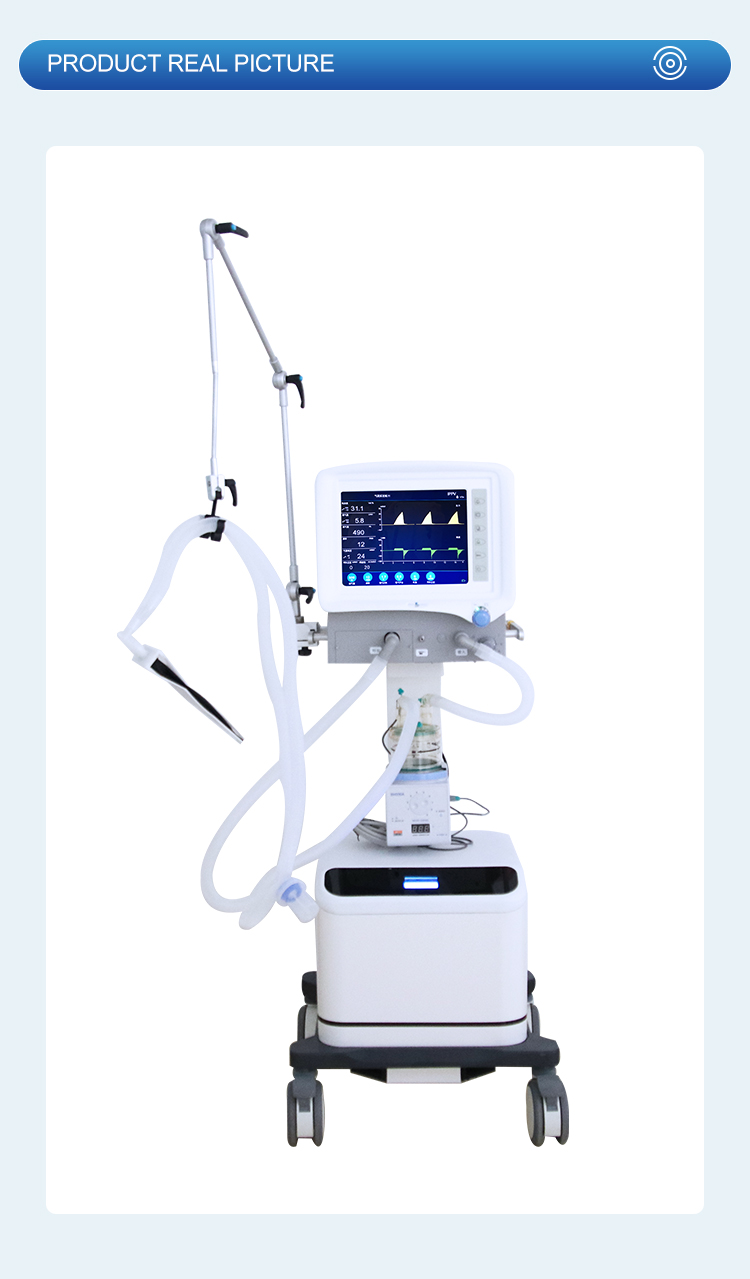

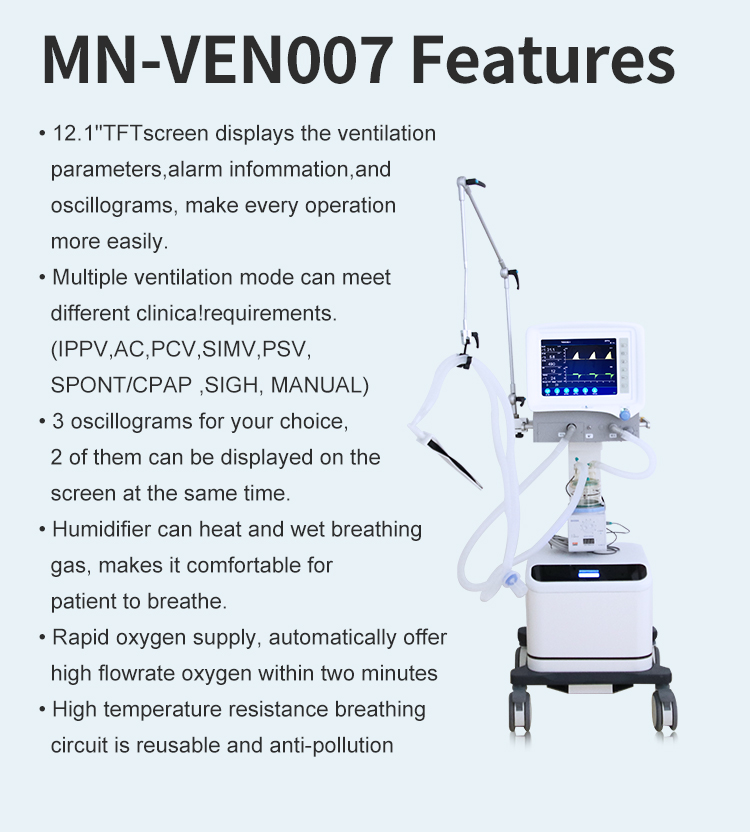

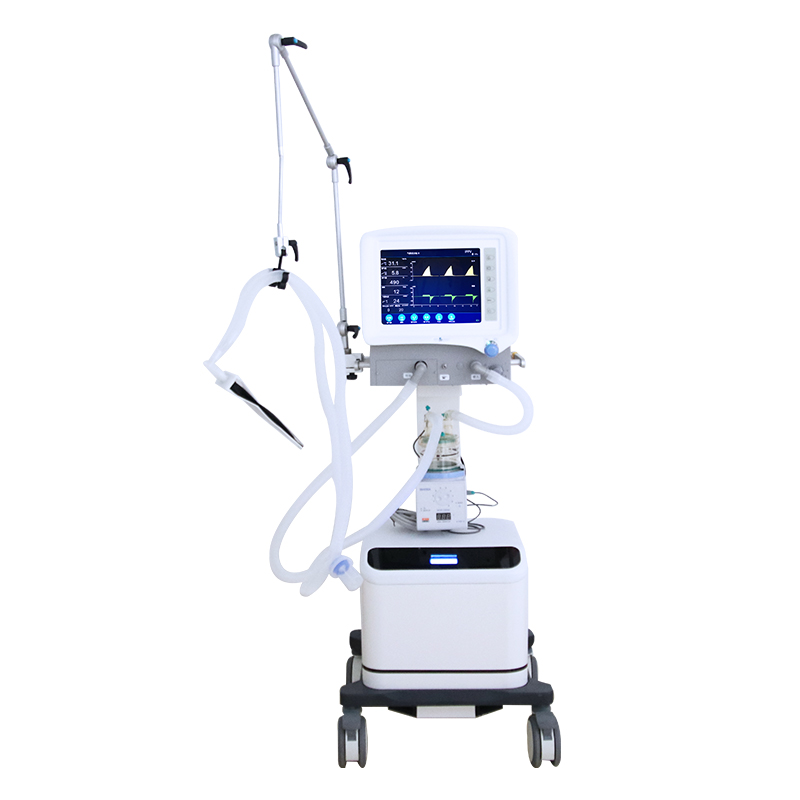

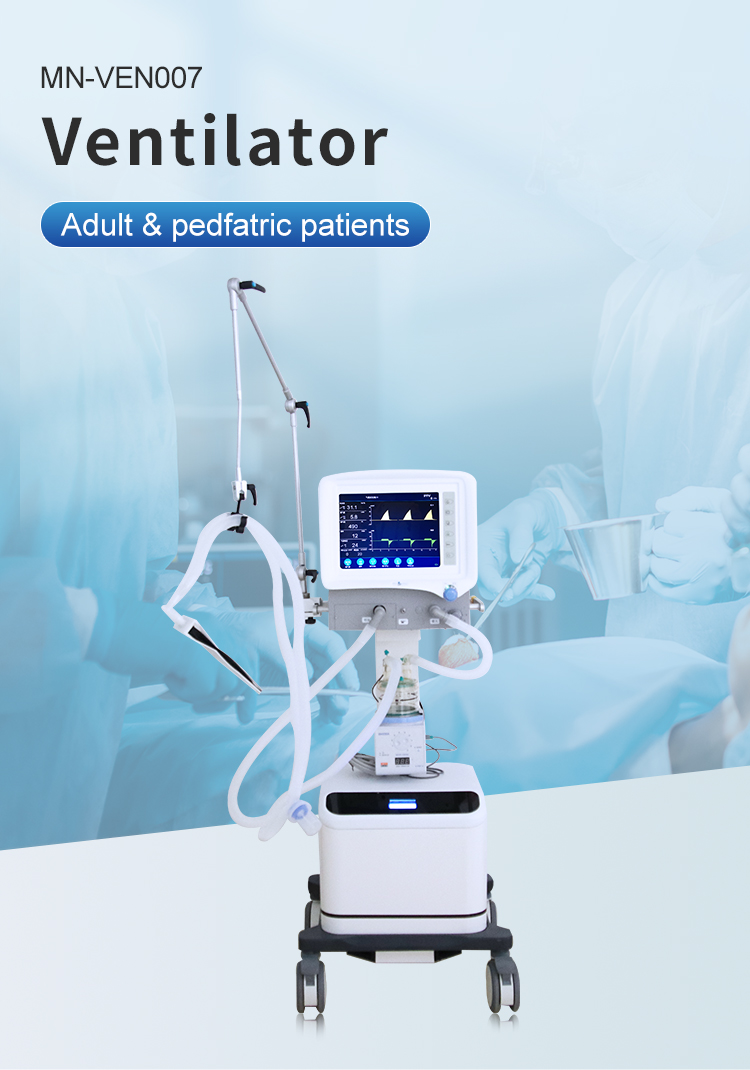

MN-VEN007 Ventilator Medical ICU Ventilator Turbine Ventilator With Trolley

Send Inquiry

Product Description

Technical Specifications (Model: MN-VENO07)

Model	MN-VENO07
Ventilation modes	IPPV, AC, SIMV, PCV, PSV, SPONT/CPAP, SIGH, MANU
Tidal volume (Vt)	20 ~ 2000 mL
Frequency(Freq)	1 min ~ 100 min
Oxygen concentration	21% ~ 100%
I:E Ratio	4:1 ~ 1:8
PEEP	0 cmH2O ~ 40 cmH2O
Pressure triggering sensitivity (Ptr)	-20 cmH2O ~ 0 cmH2O (Based on PEEP)
Flow trigger sensitivity (Ftr)	0.5 L/min ~ 30 L/min
SIGH	0 (off), 1/100 ~ 5/100
Apnea ventilation	OFF, 5s ~ 60s
Monitoring Frequency (Freq)	0/min ~ 100/min
Monitoring Tidal volume (Vt)	0 mL ~ 2500 mL
Minute Volume (MV)	0 L/min ~ 99 L/min
Airway pressure	0 cmH2O ~ 100 cmH2O

Frequently Asked Questions

What ventilation modes does the MN-VENO07 support?

The MN-VENO07 supports a wide range of modes including IPPV, AC, SIMV, PCV, PSV, SPONT/CPAP, SIGH, and manual mode.

What is the adjustable range for Tidal Volume (Vt)?

The tidal volume can be adjusted from 20 mL up to 2000 mL, making it versatile for various clinical requirements.

Can the oxygen concentration be precisely controlled?

Yes, the oxygen concentration is fully adjustable within the range of 21% to 100%.

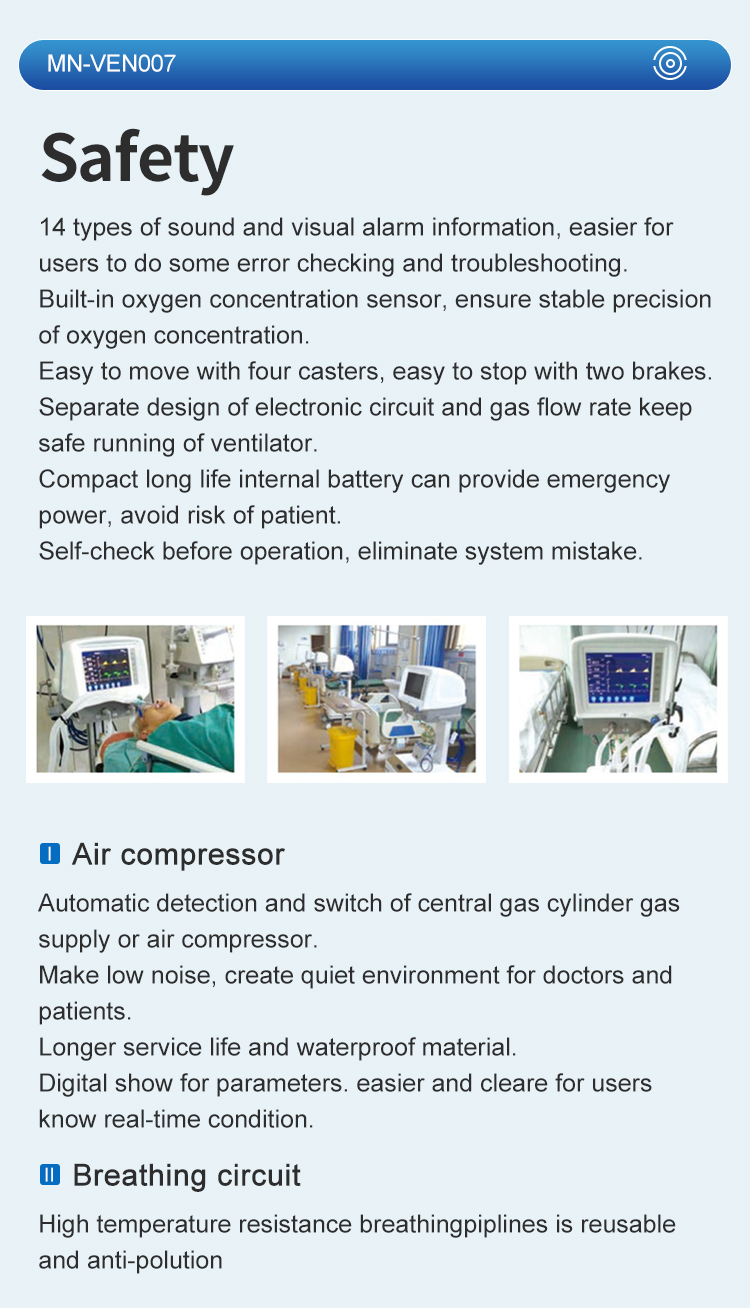

Does the system include safety features for apnea?

Yes, it features an Apnea ventilation setting that can be configured from 5 to 60 seconds or turned off.

What types of trigger sensitivity does this model offer?

The device provides both pressure triggering sensitivity (-20 to 0 cmH2O) and flow trigger sensitivity (0.5 to 30 L/min).

What is the range for PEEP settings?

Positive End-Expiratory Pressure (PEEP) can be set between 0 cmH2O and 40 cmH2O.
