Marine Self-Contained Positive Pressure Oxygen Air Breathing Apparatus 6L 30Mpa
Technical Specifications
| Model |
Cylinder volume (L) |
Working pressure (MPA) |
Air storage capacity (L) |
Alert pressure (MPA) |
Service time (min) |
Weight (kg) |
Package size (cm) |
| SJXF-5/30 |
5 |
30 |
1500 |
5-6 |
50 |
≤14 |
77X30X49 |
| SJXF-6/30 |
6 |
30 |
1800 |
5-6 |
60 |
≤15 |
77X30X49 |
| SJXF-6.8/30 |
6.8 |
30 |
2040 |
5-6 |
60 |
≤10.5 |
77X30X49 |
| SJXF-6.8X2/30 |
6.8X2 |
30 |
4080 |
5-6 |
120 |
≤17 |
77X30X49 |
| SJXF-9/30 |
9 |
30 |
2700 |
5-6 |
90 |
≤11.5 |
77X30X49 |
Product Overview
✔
This air breathing apparatus complies with SOLAS 1974 and its latest amendment.
✔
Scope of Application: Firefighting, chemical industry, shipbuilding, petroleum industry, metallurgy, mining, transportation, and other industrial sectors.
✔
Applicable Environments: Dense smoke, lack of oxygen, toxic gases, flue gas, and steam pollution. Functional in temperatures from -30°C to 60°C with 0-100% relative humidity.
✔
Main Components: High-pressure cylinders, cylinder valve, pressure reducer, quick connectors, supply valve, full face mask, pressure gauges, alarm, backplate, shoulder straps, and harness.
📜
Certifications: EC / CCS Certified.

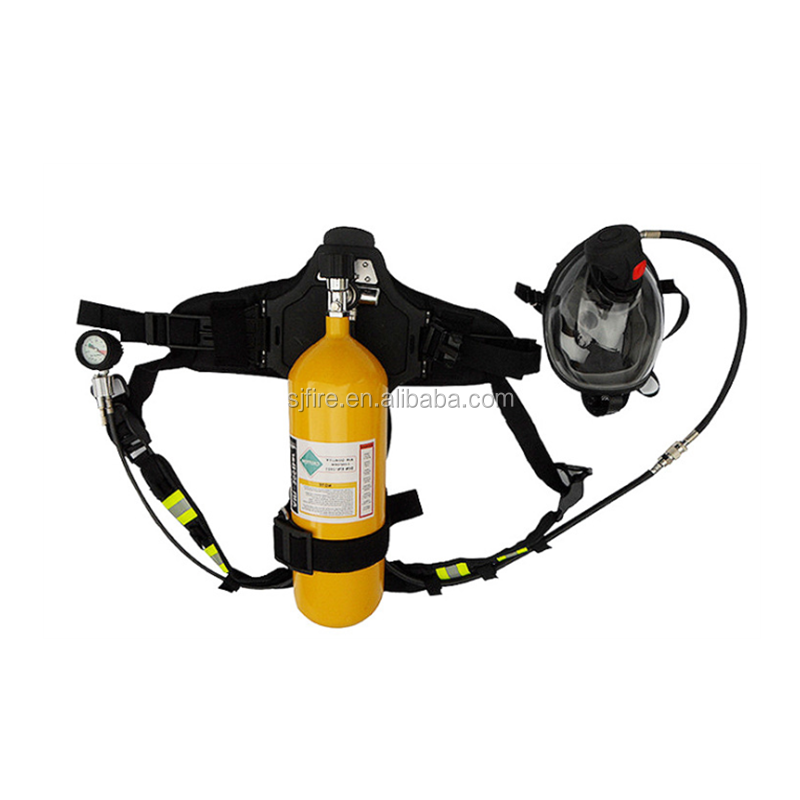

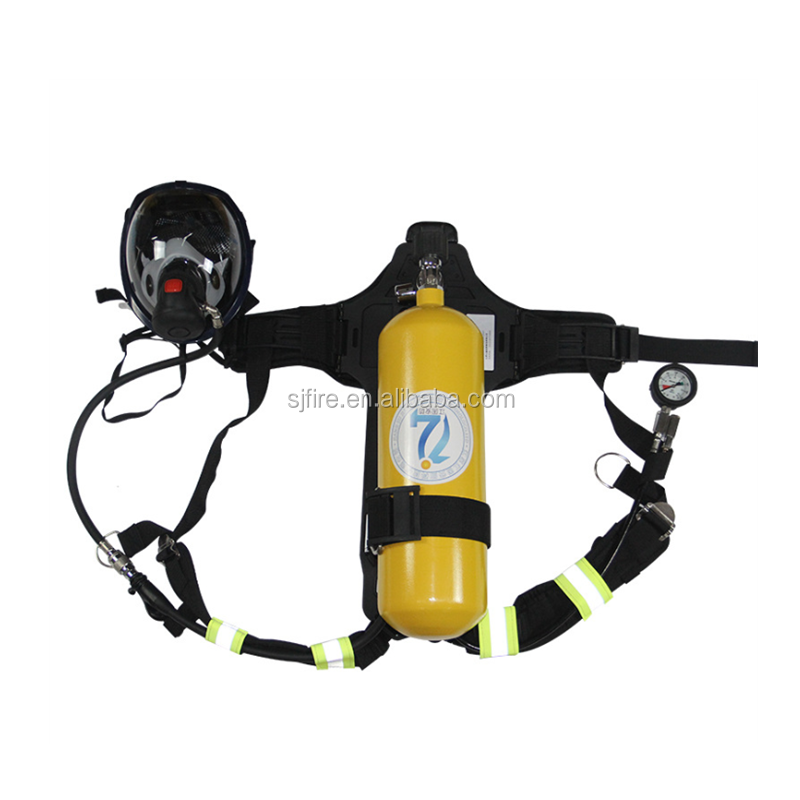

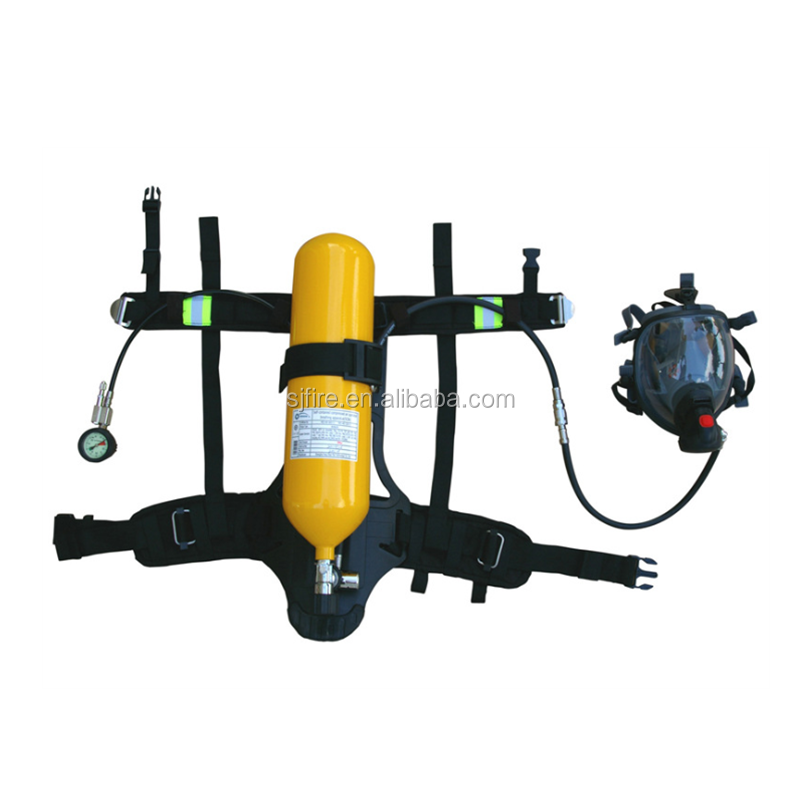

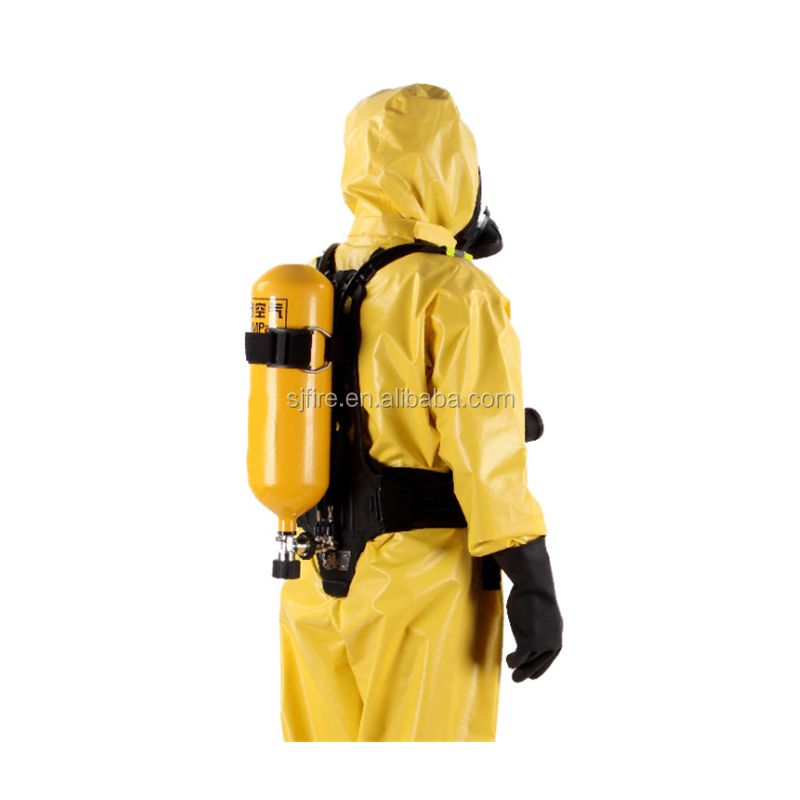

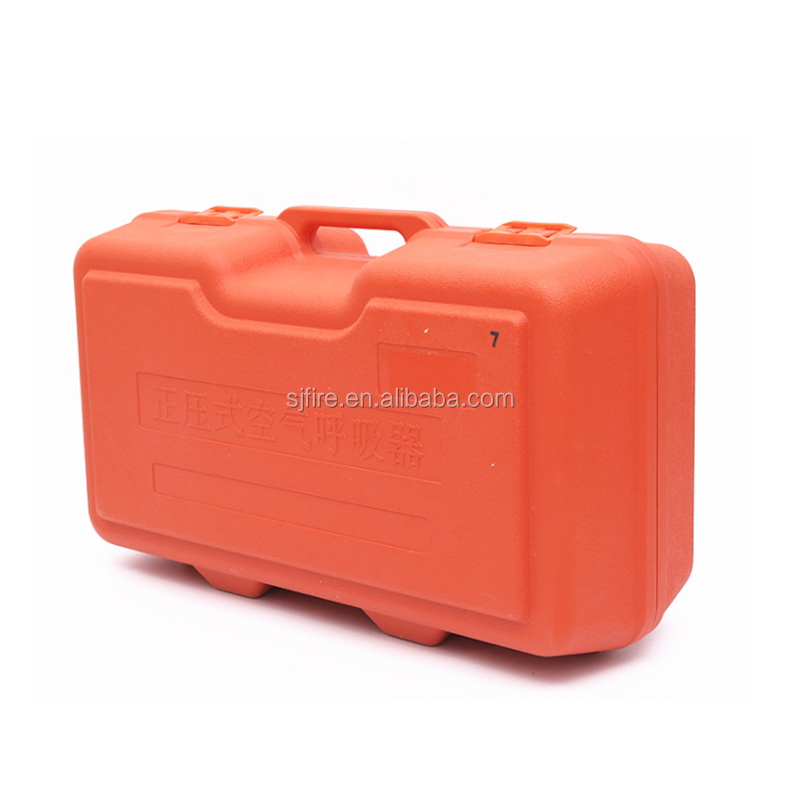

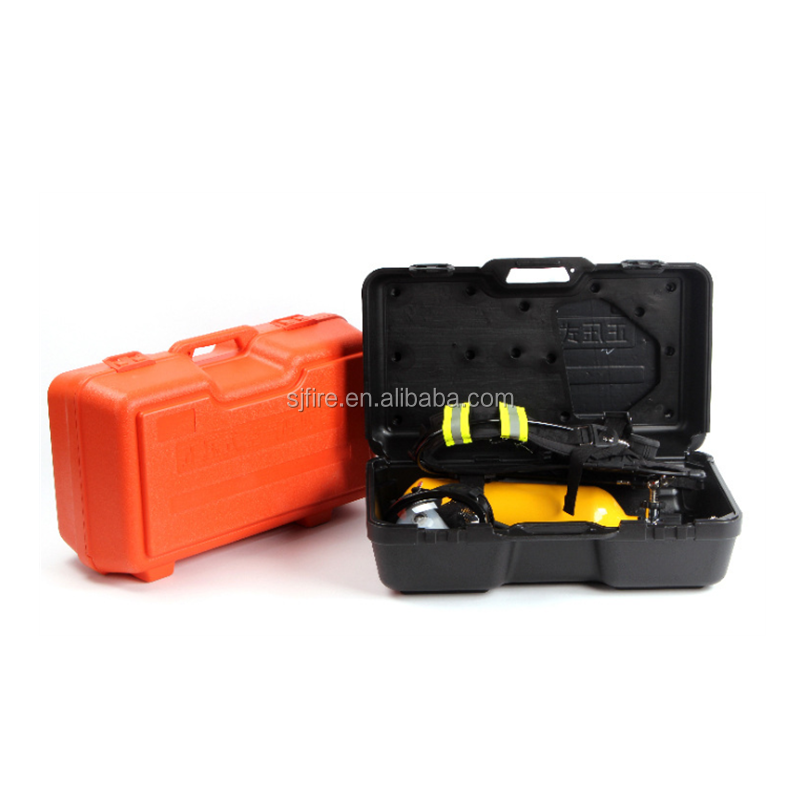

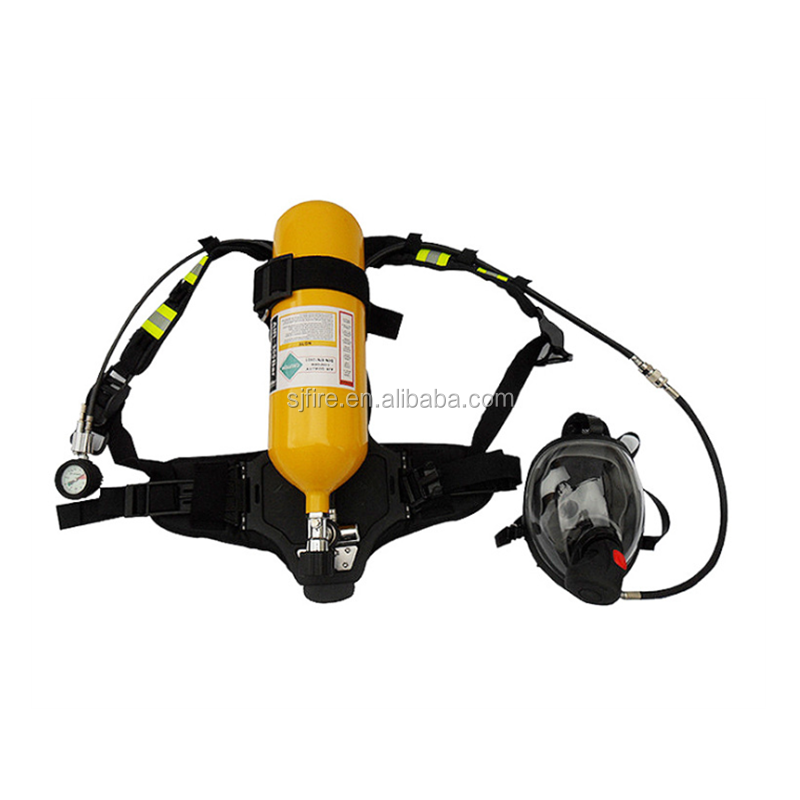

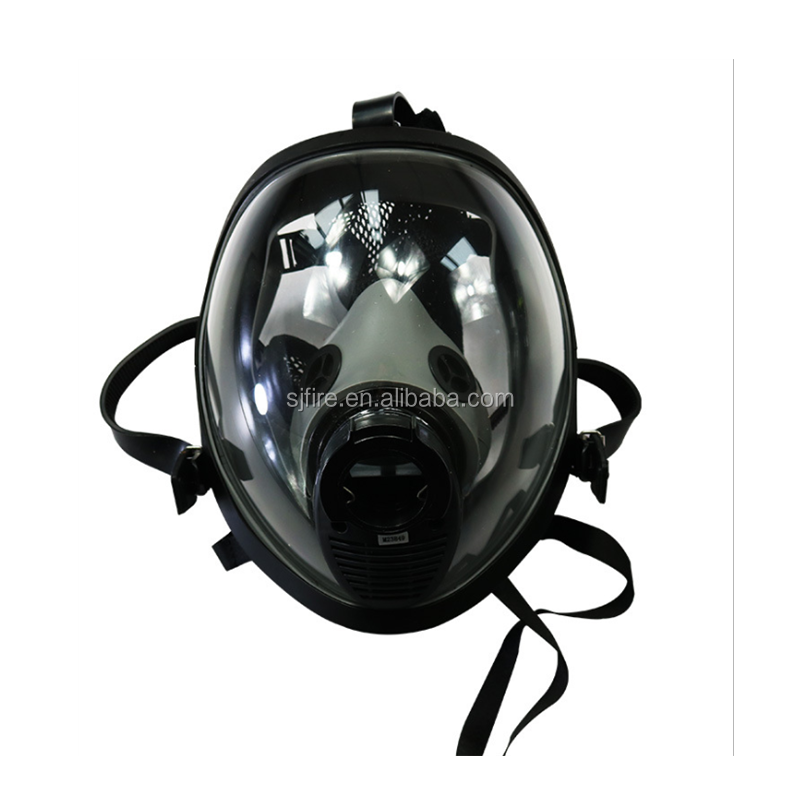

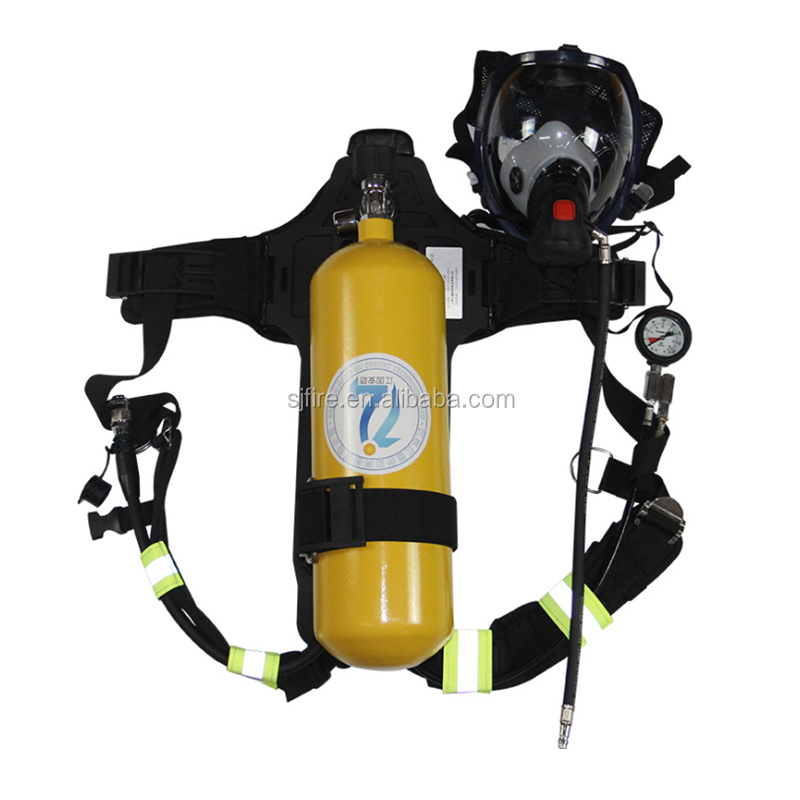

Product Detailed Display
Frequently Asked Questions
What standards does this breathing apparatus meet?
It fully complies with the SOLAS 1974 regulations and its latest international amendments for marine safety.
Which industries is this SCBA suitable for?
It is designed for firefighting, chemical processing, shipbuilding, petroleum, metallurgy, and mining environments.
What is the working temperature range?
The apparatus operates reliably in extreme temperatures ranging from -30°C to +60°C.
Does the system include an alarm for low air pressure?
Yes, it features an integrated alarm system that triggers when the pressure reaches 5-6 MPA to ensure user safety.
What certifications are available for this equipment?
This model is certified by EC (European Conformity) and CCS (China Classification Society).
What are the main components included in the package?
The full set includes the cylinder, valve, pressure reducer, quick connectors, supply valve, full face mask, pressure gauge, alarm, backplate, and harness.
