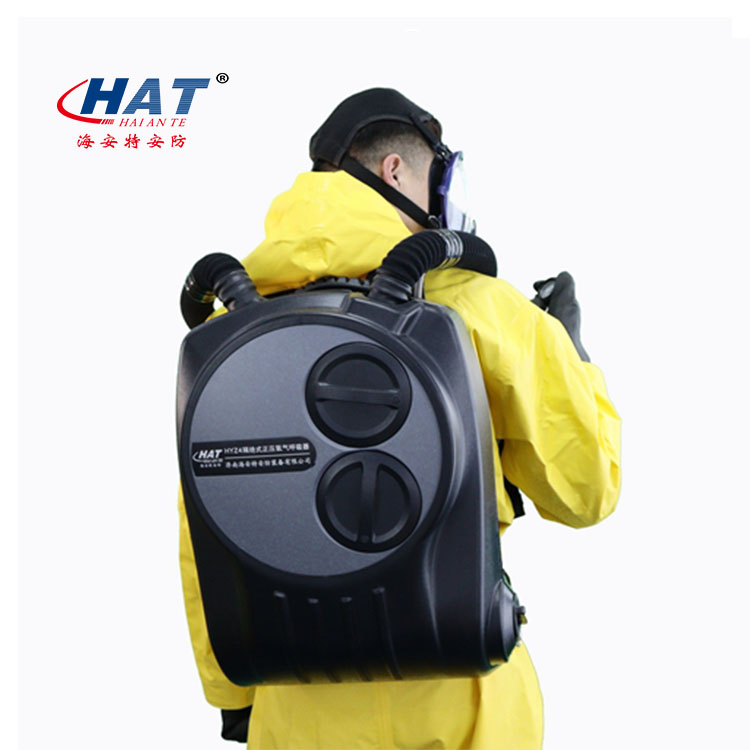

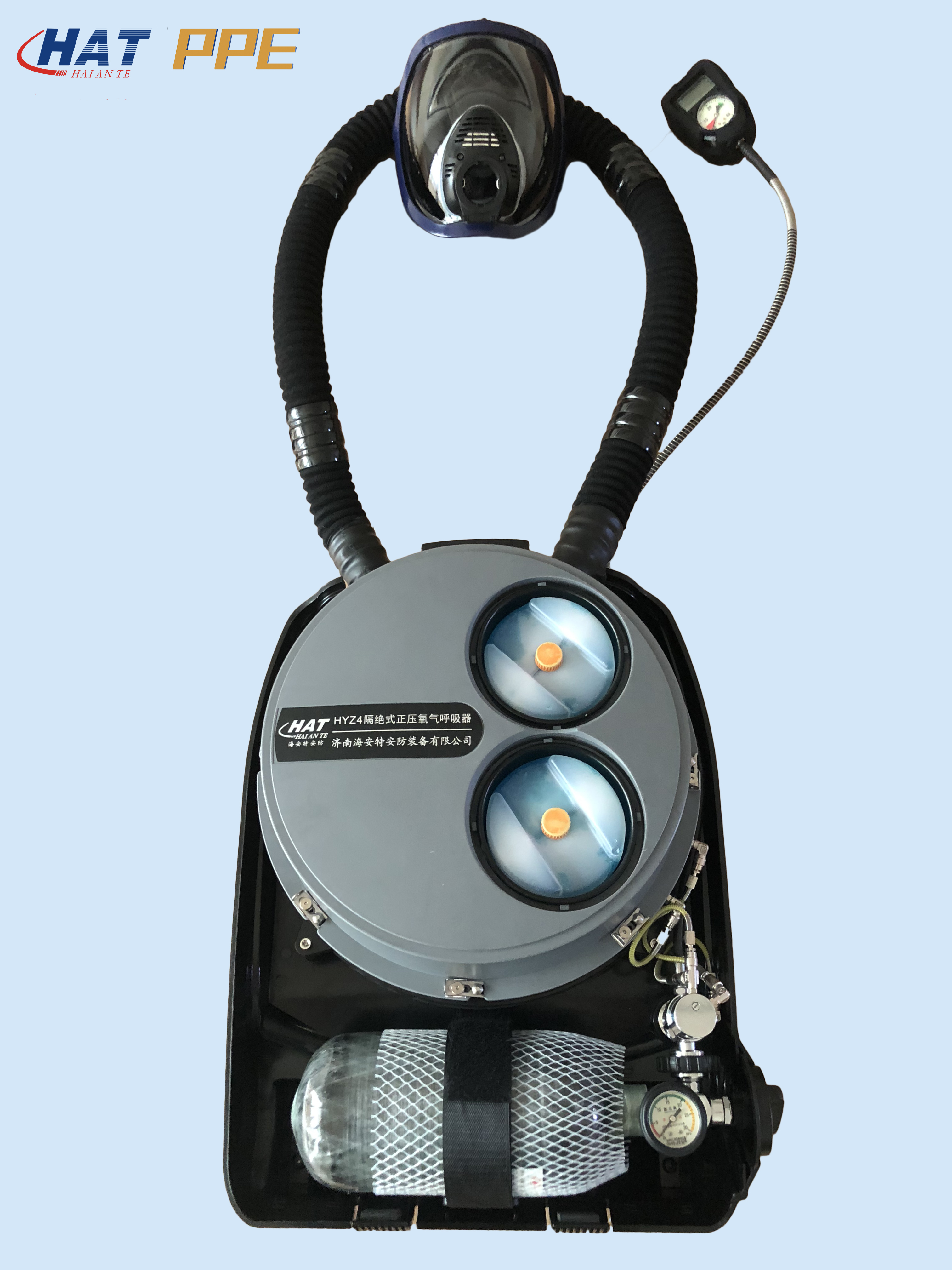

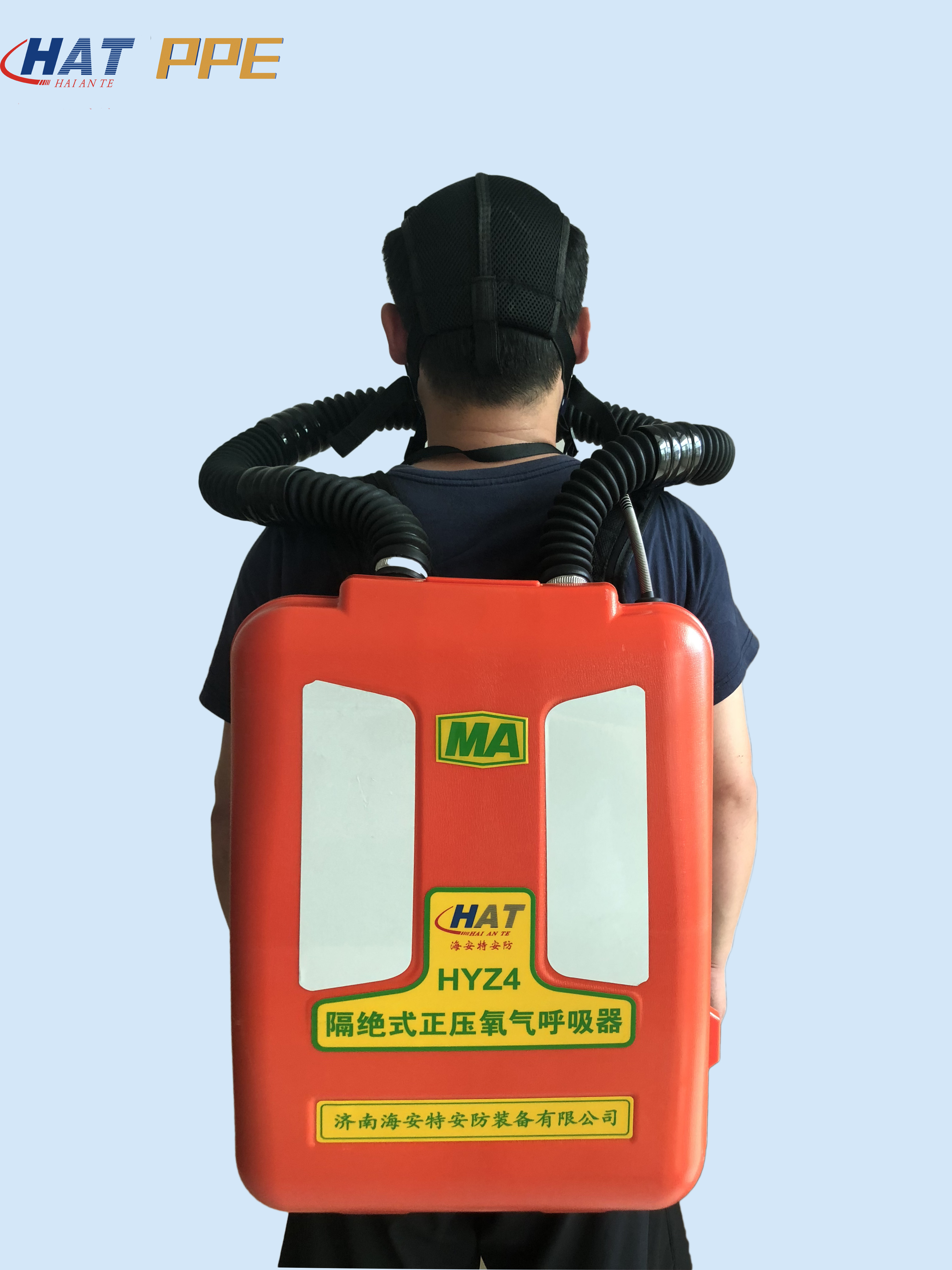

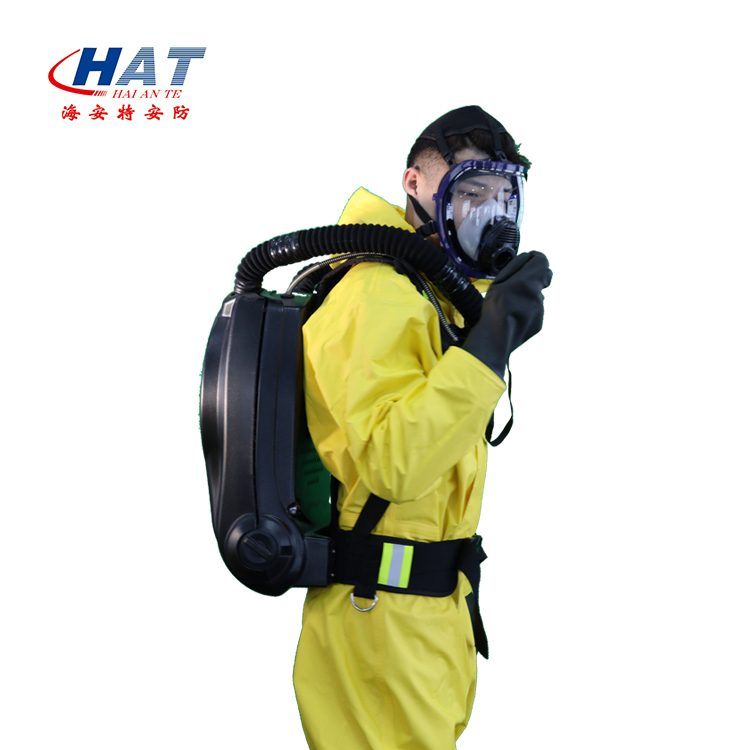

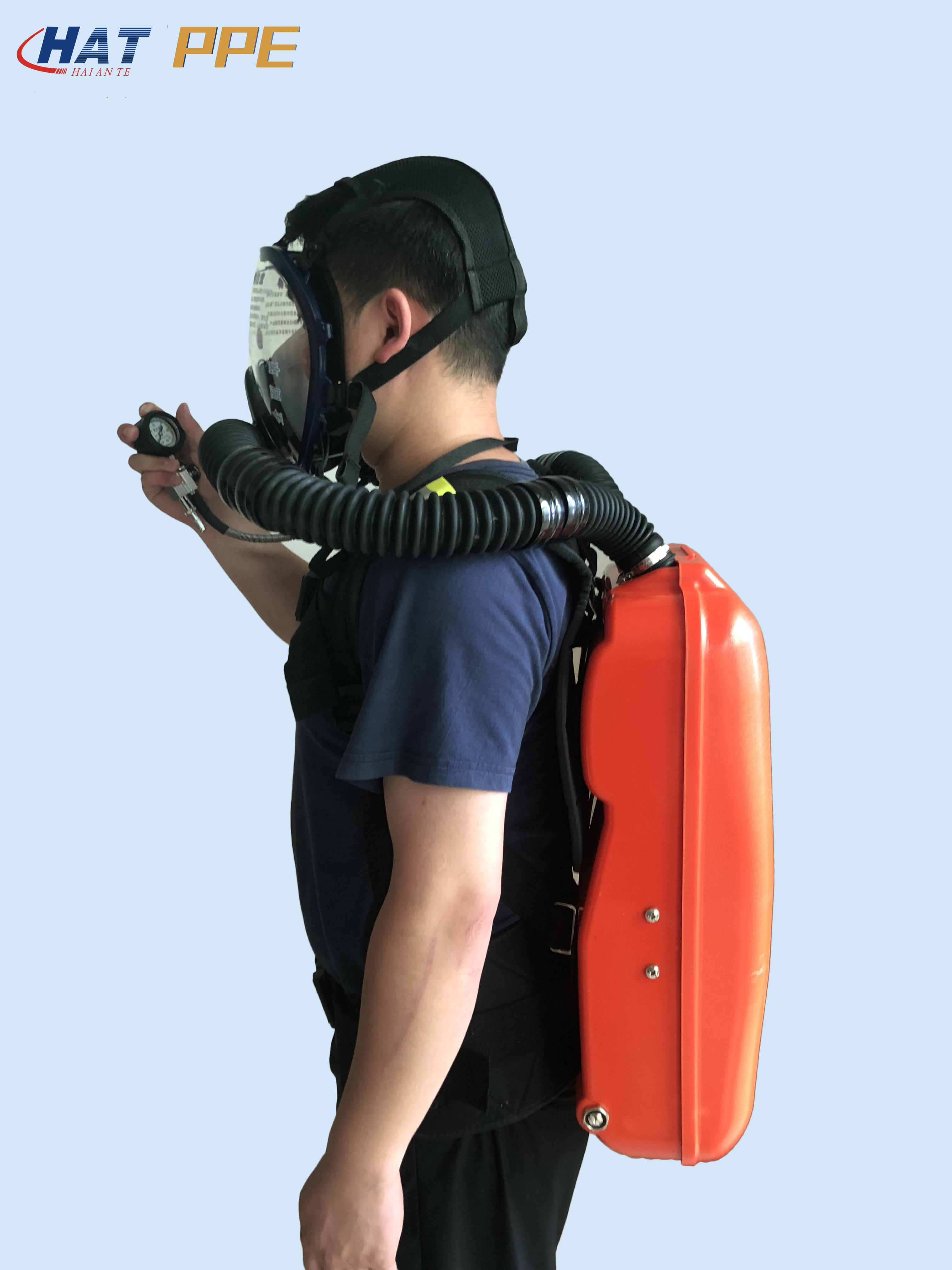

ℹ️ The oxygen breathing apparatus is a kind of respiratory protection product that is isolated from the outside. This product is designed according to the European Community Standard EN145-98 and meets the coal industry standard MT867-2000.

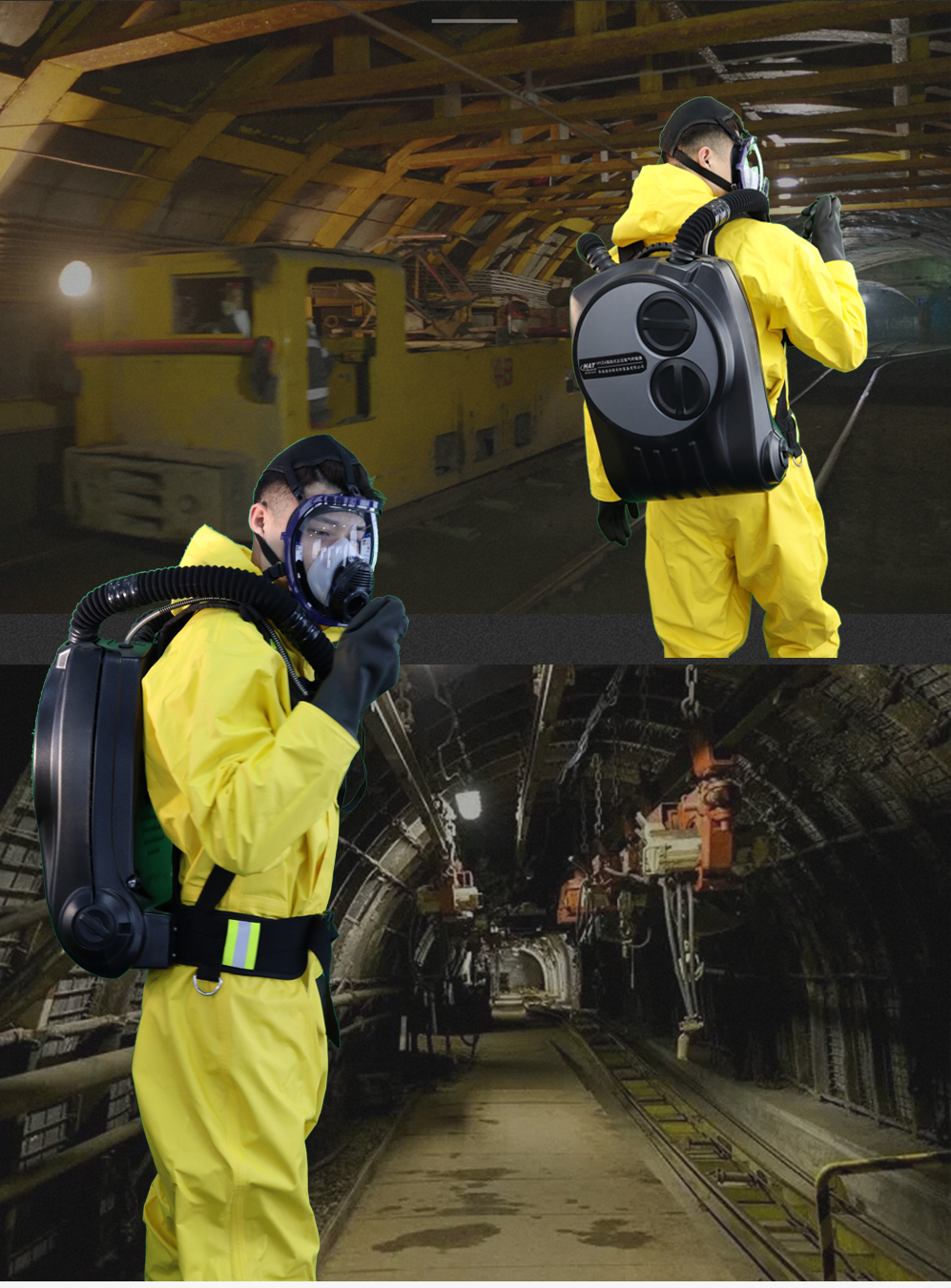

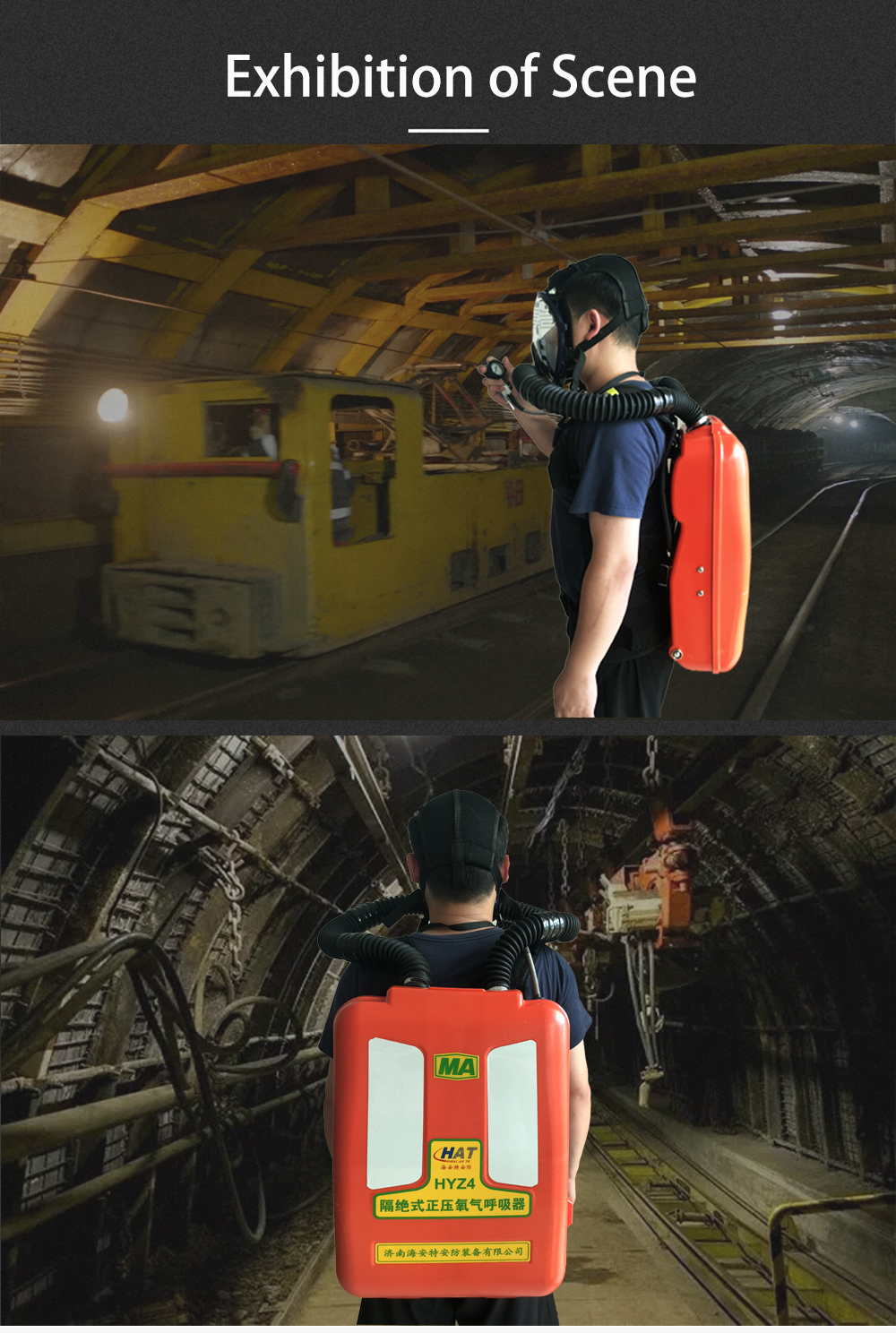

This product is mainly used for mining ambulancemen to protect their respiratory organs during rescue work, to protect them from harmful gases. It can also be used in fire protection, petroleum, chemical, metallurgy, transportation, shipbuilding, subway, electric power and other departments. Specially for the trained personnel to perform accident handling in hazardous gas environments. Suitable for anoxic, anaerobic and any atmospheric environment polluted by toxic fumes and gases.
| No. | Technical Parameters | HAT-HYZ240 | HAT-HYZ120 |
|---|---|---|---|
| 1 | Rated protection time (h) | 4 | 2 |
| 2 | Cylinder maximum working pressure (MPa) | 20 | 20 |
| 3 | Quantitative oxygen supply (L/min) | 1.5 | 1.5 |
| 4 | Automatic supply of oxygen (L/min) | ≥100 | ≥100 |
| 5 | Cylinder capacity (L) | 2.4 | 1.6 |
| 6 | Automatic exhaust valve opening pressure (Pa) | 400~700 | 400~700 |
| 7 | Carbon dioxide absorber Ca(OH)2 mass (Kg) | ≥2 | ≥1.4 |
| 8 | Dimensions: length * width * height (mm) | 580*400*180 | 460*360*145 |
| 9 | Weight (with coolant, absorbent, oxygen) (Kg) | ≤12 | ≤9 |
With over 17 years of manufacturing and development experience, our facility covers a production area of 12,000 square meters. Our technical team includes senior engineers and specialists dedicated to professional safety equipment development, ensuring the highest standards of respiratory protection for hazardous environments.
